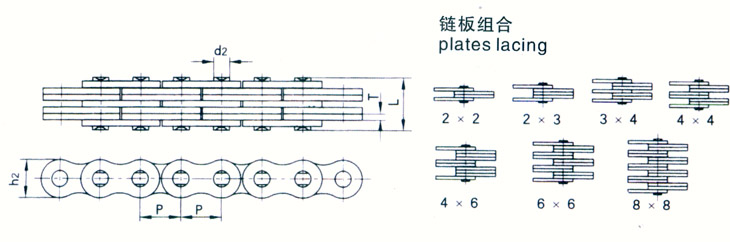

ISO 鏈號 ISO chain No. |
ANSI 鏈號 ANSI chair No. |
節距 Pitch
|
鏈板組合 Platrs Lacing |
鏈板高度 Piate Deotg |
鏈板厚度 Plate thickness |
銷軸直徑 pin diameter
|
銷軸長度 pin Length |
極限拉伸載荷 Ultimate tensile strength |
平均拉伸載荷 Average tensile strength |
每米重量 Weight per meter |
|
P |
|
h2 max |
T max |
d2 max |
L max |
Q max |
|
q
|
||
|
mm |
|
mm |
mm |
mm |
mm |
KN |
KN |
kg/m |
||
|
LH0822 |
BL422 |
|
2 × 2 |
|
|
|
11.05 |
22.2 |
27.6 |
0.64 |
|
LH0823 |
BL423 |
|
2 × 3 |
|
|
|
13.16 |
22.2 |
27.6 |
0.8 |
|
LH0834 |
BL434 |
|
3 × 4 |
|
|
|
17.4 |
33.4 |
41.4 |
1.12 |
|
LH0844 |
BL444 |
12.7 |
4 × 4 |
12.07 |
|
|
19.51 |
44.5 |
56.0 |
1.26 |
|
LH0846 |
BL446 |
|
4 × 6 |
|
|
|
23.75 |
44.5 |
56.0 |
1.6 |
|
LH086646 |
BL466 |
|
6 × 6 |
|
|
|
27.99 |
66.7 |
81.7 |
1.92 |
|
LH0888 |
BL488 |
|
8 × 8 |
|
|
|
36.45 |
89.0 |
109.4 |
2.56 |
|
LH1022 |
BL522 |
|
2 × 2 |
|
|
|
12.9 |
33.4 |
42.8 |
0.88 |
|
LH1023 |
BL523 |
|
2 × 3 |
|
|
|
15.37 |
33.4 |
42.8 |
1.1 |
|
LH1034 |
BL534 |
|
3 × 4 |
|
|
|
20.32 |
48.9 |
63.6 |
1.5 |
|
LH1044 |
BL544 |
15 |
4 × 4 |
15.09 |
2.44 |
5.96 |
22.78 |
66.7 |
84.5 |
1.8 |
|
LH1046 |
BL546 |
|
4 × 6 |
|
|
|
27.74 |
66.7 |
84.5 |
2.2 |
|
LH1066 |
BL566 |
|
6 × 6 |
|
|
|
32.69 |
100.1 |
125.1 |
2.65 |
|
LH1088 |
BL588 |
|
8 × 8 |
|
|
|
42.57 |
133.4 |
169.5 |
3.5 |
|
LH1222 |
BL622 |
|
2 × 2 |
|
|
|
17.37 |
48.9 |
63.6 |
1.45 |
|
LH1223 |
BL623 |
|
2 × 3 |
|
|
|
20.73 |
48.9 |
63.6 |
1.8 |
|
LH1234 |
BL634 |
|
3 × 4 |
|
|
|
27.43 |
75.6 |
102.6 |
2.5 |
|
LH1244 |
BL 644 |
875 |
4 × 4 |
18.11 |
3.3 |
7.94 |
30.78 |
97.9 |
122.3 |
2.9 |
|
LH1246 |
BL 646 |
|
4 × 6 |
|
|
|
37.49 |
97.9 |
122.3 |
3.6 |
|
LH1266 |
BL666 |
|
6 × 6 |
|
|
|
44.2 |
146.8 |
190.8 |
4.3 |
|
LH1288 |
BL688 |
|
8 × 8 |
|
|
|
57.61 |
195.7 |
238.8 |
5.8 |
|
LH1622 |
BL822 |
|
2 × 2 |
|
|
|
21.34 |
84.5 |
108.2 |
2.2 |
|
LH1623 |
BL823 |
|
2 × 3 |
|
|
|
25.48 |
84.5 |
108.2 |
2.7 |
|
LH1634 |
BL834 |
|
3 × 4 |
|
|
|
33.76 |
129.0 |
143.6 |
3.8 |
|
LH1644 |
BL844 |
19.05 |
4 × 4 |
24.13 |
4.09 |
9.54 |
37.90 |
169.0 |
214.6 |
4.3 |
|
LH1646 |
BL846 |
|
4 × 6 |
|
|
|
46.18 |
169.0 |
214.6 |
5.4 |
|
LH1666 |
BL866 |
|
6 × 6 |
|
|
|
54.46 |
253.6 |
324.5 |
6.5 |
|
LH1688 |
BL888 |
|
8 × 8 |
|
|
|
17.02 |
338.1 |
432.7 |
8.6 |
|
LH2022 |
BL1022 |
|
2 × 2 |
|
|
|
25.37 |
115.6 |
146.8 |
3.4 |
|
LH2023 |
BL1023 |
|
2 × 3 |
|
|
|
30.33 |
115.6 |
146.8 |
4.3 |
|
LH2034 |
BL1034 |
|
3 × 4 |
|
|
|
40.23 |
182.4 |
231.6 |
6.0 |
|
LH2044 |
BL1044 |
25.4 |
4 × 4 |
30.18 |
4.9 |
11.11 |
45.19 |
231.3 |
291.4 |
6.9 |
|
LH2046 |
BL1046 |
|
4 × 6 |
|
|
|
55.09 |
231.3 |
291.4 |
8.6 |
|
LH2066 |
BL1066 |
|
6 × 6 |
|
|
|
65.00 |
347.0 |
430.3 |
10.3 |
|
LH2088 |
BL1088 |
|
8 × 8 |
|
|
|
84.81 |
462.6 |
555.1 |
13.8 |
